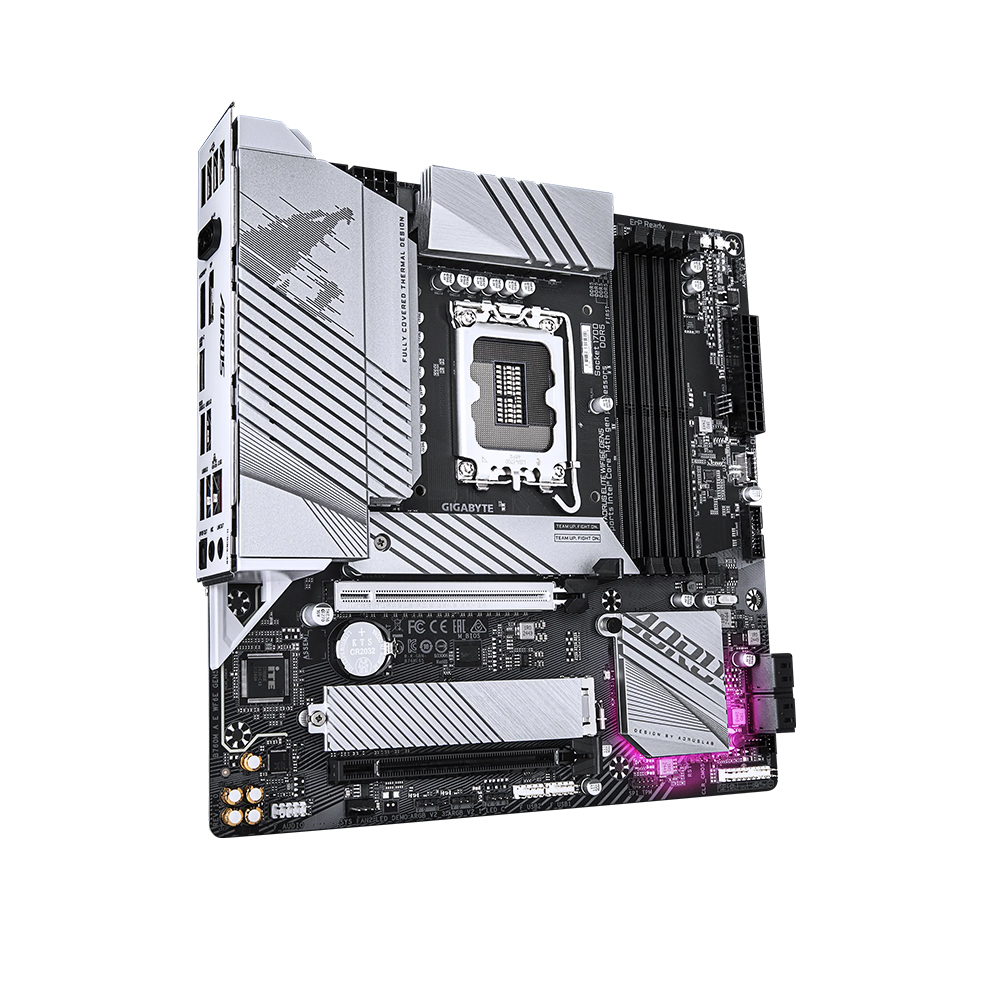

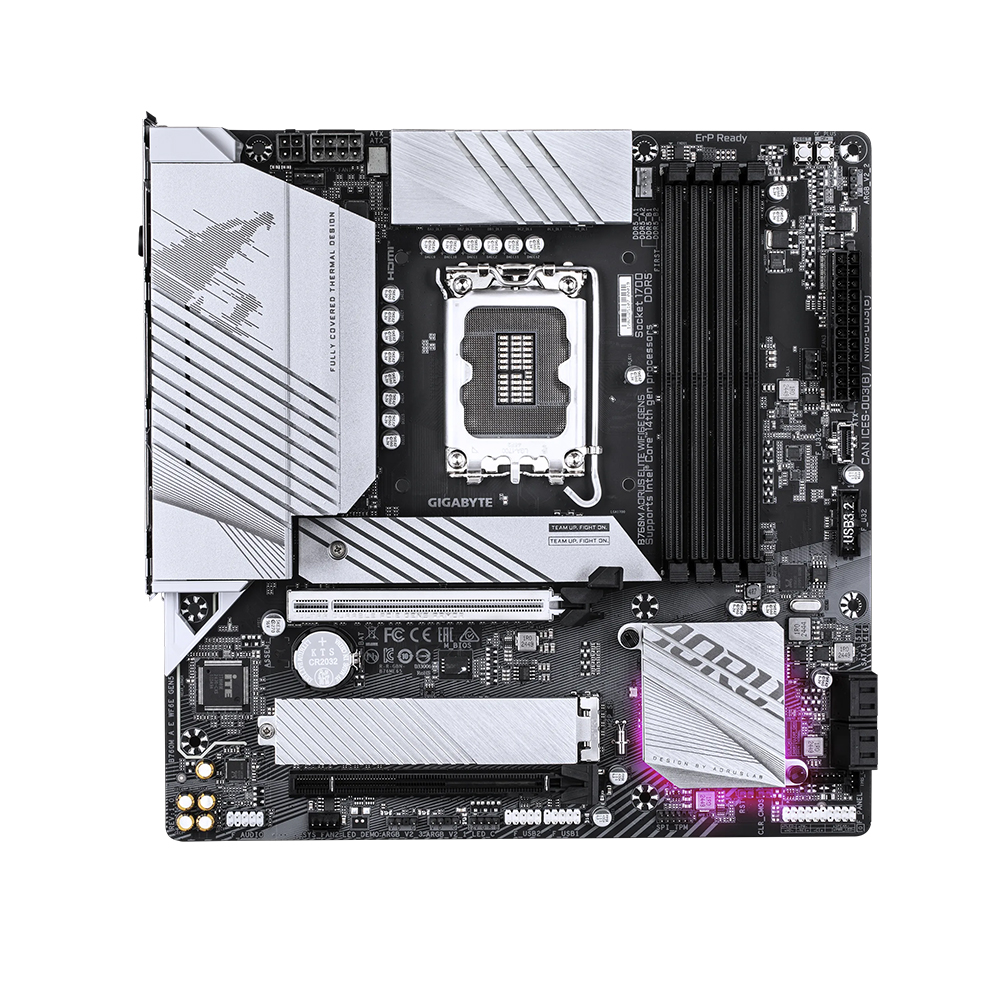

Mainboard Gigabyte B760M Aorus Elite WIFI6E GEN5 DDR5 (Bluetooth)

Đánh giá:
36 tháng
Giá bán: 4,590,000đ

Socket: LGA1700 hỗ trợ CPU intel 14th, 13th, and 12th Generation

Kích thước: Micro ATX

Khe cắm RAM: 4 khe (Tối đa 256 GB)

Khe cắm mở rộng: 1 x PCI Express x16 slot, 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Khe cắm ổ cứng: 1 x M.2 connectors, 1 x M.2 connector, 4 x SATA 6Gb/s connectors

CHÍNH SÁCH BÁN HÀNG

Nhà Bán lẻ Uy tín tại Nha trang

Sản phẩm Chính hãng 100%

Bảo hành theo Tiêu chuẩn NSX

Tư vấn miễn phí các giải pháp CNTT, phòng game, công ty, văn phòng

GIAO NHẬN - THANH TOÁN

Giao hàng toàn quốc

Miễn phí giao hàng trong khu vực

Thanh toán linh động

Trả góp lãi suất 0%

Sản phẩm

Bo mạch chủ

Tên Hãng

Gigabyte

Model

B760M AORUS ELITE WIFI6E GEN5

CPU hỗ trợ

Intel

Chipset

B760

RAM hỗ trợ

14th and 13th Generation Intel® Core™ i9/i7 Pocessors:
- Support for DDR5 5600/5200/4800/4400 MT/s memory modulesjk
13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
- Support for DDR5 4800/4400 MT/s memory modulesjk
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)

Khe cắm mở rộng

CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Ổ cứng hỗ trợ

CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted PlatformModule header (For theGC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

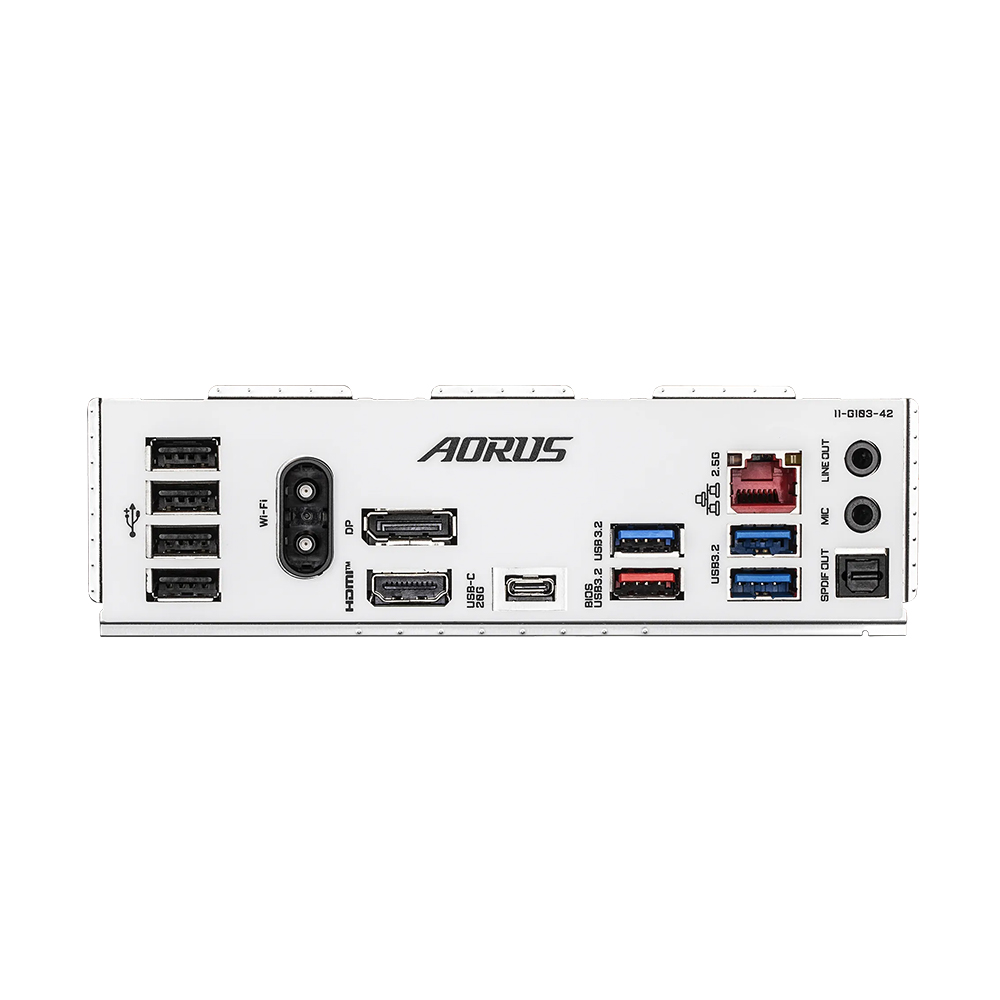

Cổng kết nối (Back Panel)

2 x antenna connectors (2T2R)
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks

LAN / Wireless

Intel® Wi-Fi 6E AX210
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Kích cỡ

Micro ATX Form Factor; 24.4cm x 24.4cm
